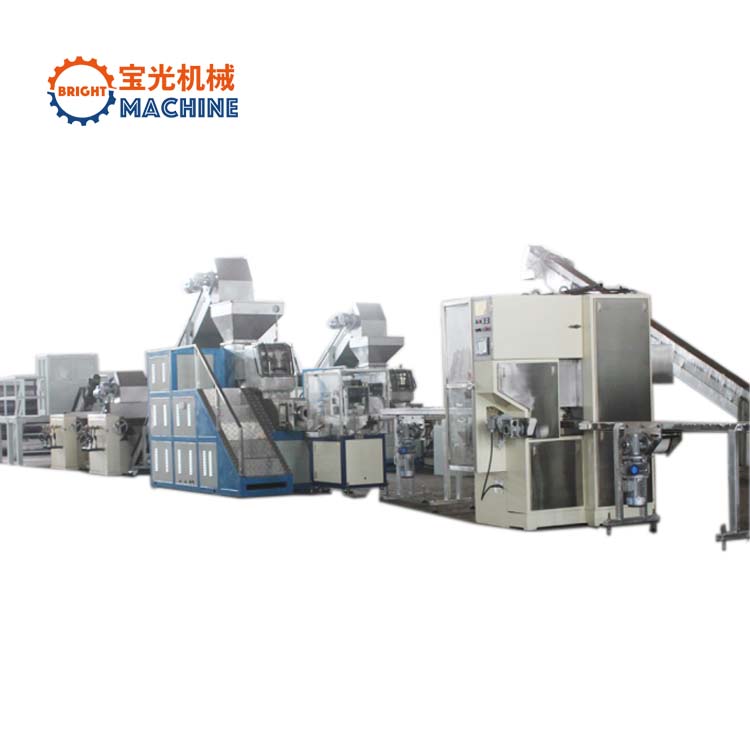

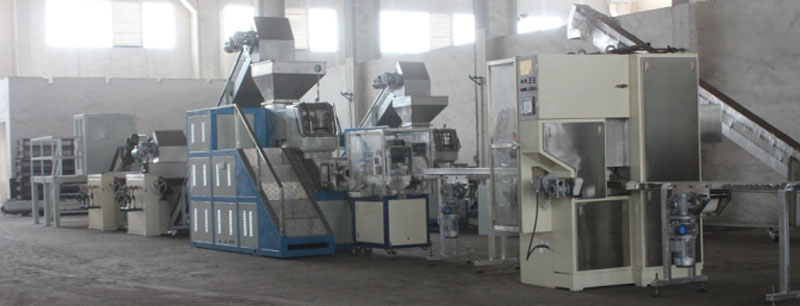

Fully automatic soap making machine with printer 1 to 3 capacity 2000kg

Fully automatic soap making machine with printer 1 to 3 capacity 2000kg

This soap making machine line can been used to produce  laundry soap and tiolet saop with fatty acid content (active content) from 40% to 80%.

Material : soap noodle.

Capacity :0-300kg/hr, 300-500kg/hr,500-800kg/hr,1000-2000kg/hr,2000-3000kg/hr.

The dimensionand pattern of the soap can be made by customer’s requirements.

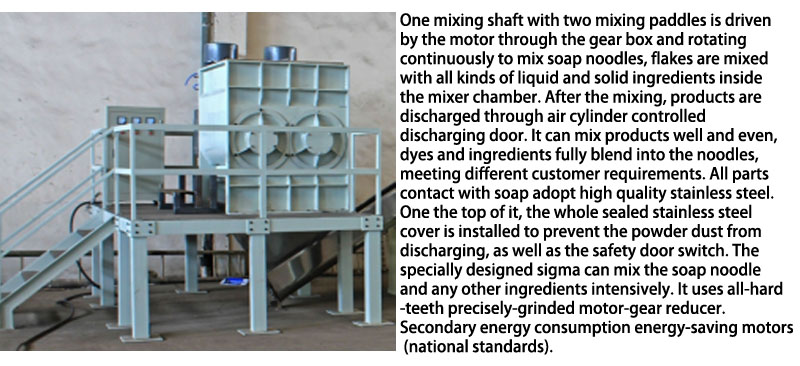

automatic soap making machine----kneader

All the parts touched by soap noodle is stainless steel, double shaft mixing. Use “Sigmar” type agitator, two shafts
with different speed to do 55 degree counter rotating to mix the material.
The motor for mixing blade can rotate in positive and reversal, it’ s applicable for all kinds of soap, especially
good for transparent soap making.
OUTPUT: 300kg/time
REVOLUTION: 35~26 rpm
Diameter of trough: Φ1300
POWER: 22kw+22kw
OVERALL SIZE: 3280×1800×1600mm
WEIGHT: about 3600kg

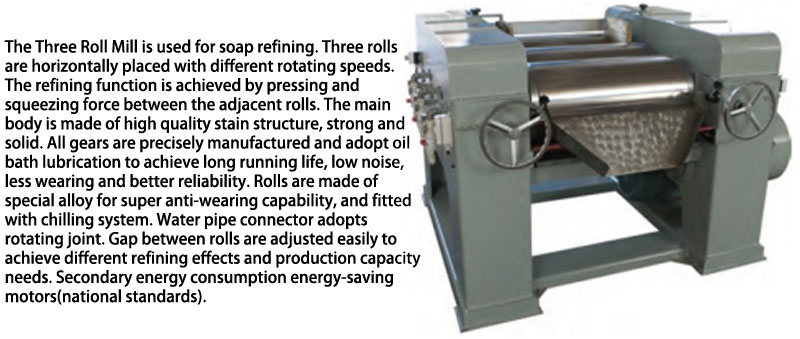

automatic soap making machine---three roller mill

MATERIAL: frame- Cast iron, roller-high Chrome alloy, hardened roll surface
ROLLER DIAMETER：405mm
ROLLER LENGTH：1000mm
SPEED RATIO：19:57.5:177.5
POWER：22kw
OVERALL SIZE：2250*1800*1500
WEIGHT：About 5800kg

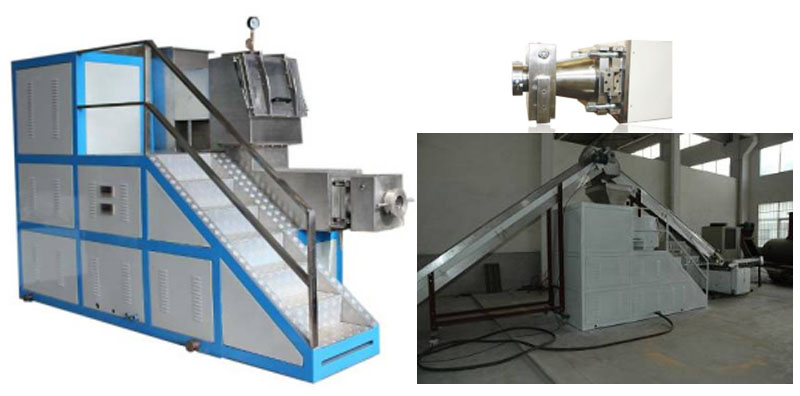

automatic soap making machine----plodder

MATERIAL:  Q235 carbon steel with stainless steel surface touched by soap
OUTPUT：1800-2000kg/h
WORM DIAMETER：Φ300mm
1st REVELUTION：18 rpm
POWER：30kw
2nd REVELUTION：10-18 R/M
POWER：22kw
(frequency conversion adjustable)
Vacuum pump：2.2kw
OVERALL SIZE：4250×1450×2990mm
WEIGHT：About 6500 kg

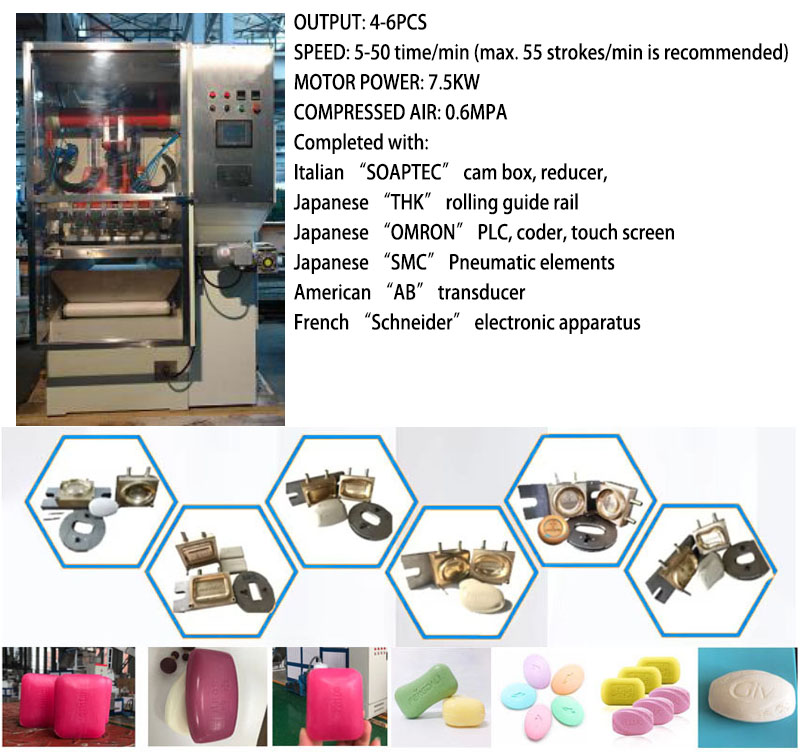

automatic soap making machine---1 to 3/4/6 printer

The Advantages of automatic  soap making machine

Our automatic soap making machine is at the forefront of innovation, revolutionizing the soap manufacturing process.

Here are the key advantages that set our machinery apart:

1.Efficiency in Production:

Our fully automatic soap making machine is designed for optimal efficiency. It streamlines the entire production

process, from raw material input to packaging, reducing manual labor and maximizing output.

2.Precision in Formulation:

Always achieve precise soap recipes with our small hotel soap making machine production line system. Ensure high soap quality.

3.Cost-Effective Operation:

Customizing machines for soap production with different outputs for different customers is the maximization of customers' profits.

4.Flexibility in Batch Sizes:

We can provide special designs according to the customer's workshop area to make production more convenient for the customer.
